SGP INTERLAYER Made in China, Not Dupont, Not Kuraray, but China Brand

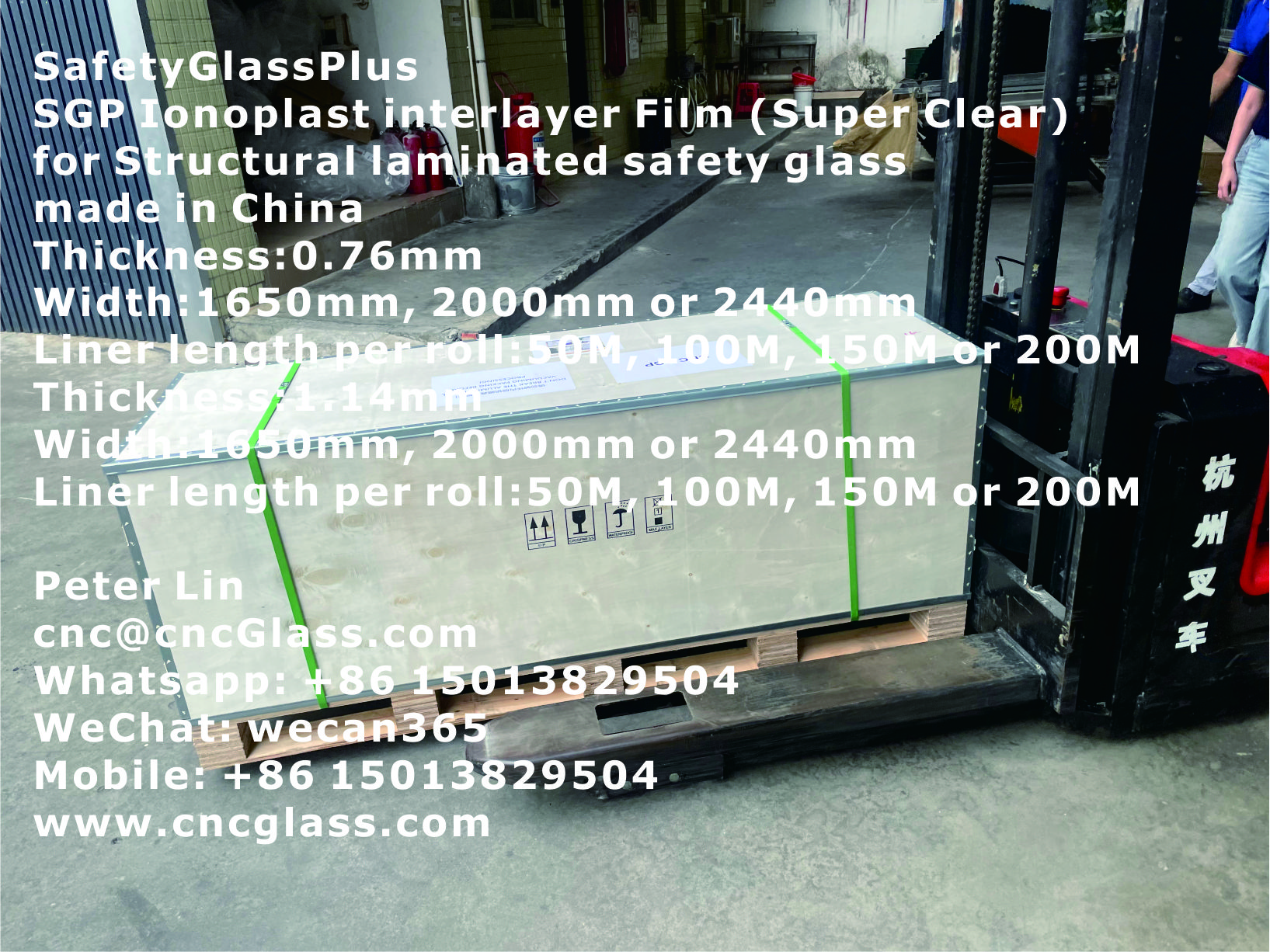

SGP ionoplast Interlayer for Structural Laminated Safety Glass

SGP: 100 times stiffer and 5 times stronger than PVB used as anti-explosion or anti-hurracane solution

Made In China

Replacing“Dupont”Kuraray SGP

Color: Super clear

Thickness:0.76mm

Width:1650mm, 2000mm or 2440mm

Liner length per roll:50M, 100M, 150M or 200M

Thickness:1.14mm

Width:1650mm, 2000mm or 2440mm

Liner length per roll:50M, 100M, 150M or 200M

Recipe of Heating SGP INTERLAYER Laminated Glass in EVA Vacuum Ovens

Please note that Not all EVA vacuum oven can laminate SGP interlayer, some can, some can not.

【1】The EVA ovens may work slightly differently, so you need to do some adjusting by yourselves based on real situations.

【2】Vacuum pressure: should be stronger than 101 kPa

【3】Low temperature stage:

Cold vacuuming for 5 mins

10mins heating up to 65℃

Holding at 65℃ for 30mins

【4】High temperature stage(Cooking time) : at 135 degrees C for 3.5 hours

【5】Always put only one piece of pre-SGP laminated glass per vacuum bag, you can not stack or place multiple pieces in one bag(or you may have bubbles problem).

The above data is based on [6mmGLASS+0.76mmSGP+6mmGLASS], if you laminating thicker interlayer or thicker glass, please keep the same temperature, but prolong the holding time for high temperature stage by 10-30mins.

Contact us, if you need help:

Peter Lin

cnc@cncGlass.com

Whatsapp: +86 15013829504

WeChat: wecan365

Mobile: +86 15013829504

www.cncglass.com

Autoclave Heating Cycle Recipe of SGP Laminated Glass Process Guide

【1】Laminating room:

Temperature: 22°C – 28°C Humidity: 18% – 28%

【2】Rolling: the glass surface temperature after rolling should be:63±8℃

【3】Autoclave:

Temperature:135°C(no over 137.8℃) Pressure:180–200psi (12–14 bar) Time:60 minutes(can be longer) Cooling speed:3℃/MIN

Datasheet of SGP Interlayer

ItemCNC SGPCertification of Detection Kuraray SGPCertification of Detection
Tear Strength165.4KN/m
(1.54mm)
ASTM D-62450MJ/m³
(2.3mm)
ASTM D-638
Tensile Strength37.7MpaASTM D-63828.1MpaASTM D-638
Elongation at Break330%
(1.54mm)
ASTM-412400%
(2.3mm)
ASTM-412
Proportion0.95ASTM-7920.95ASTM-792
Haze<0.3%JC/T 2166-2013<0.2%JC/T 2166-2013
Yellow Index<1.5JC/T 2166-2013<0.7JC/T 2166-2013
Refractive Index1.5JC/T 2166-20131.5JC/T 2166-2013
Transimittance88%JC/T 2166-201389%JC/T 2166-2013
UV Block99.90%GB15763.3-200999.90%GB15763.3-2009
Moisture Content<0.08%JC/T 2166-2013<0.2%JC/T 2166-2013
Knock Value≥7JC/T 2166-2013≥7JC/T 2166-2013
Melting Point470℃ASTM D-1929470℃ASTM D-1929
Thermal Contraction≤3%JC/T 2166-2013≤3%JC/T 2166-2013

If you want to order, please simply send us an email.

Peter Lin

cnc@cncGlass.com

Whatsapp: +86 15013829504

WeChat: wecan365

Mobile: +86 15013829504

www.cncglass.com

silicone membrane, silicone blanket,

silicone rubber, silicone sheet,silicone foils

Peter Lin,  cnc@cncGlass.com,

cnc@cncEVA.com

Whatsapp:  0086 15013829504,

WeChat:  WeCan365

www.cncglass.com  www.cnceva.com

Silicone rubber sheet for glass industry is a key component of our company dedicated to supporting the glass vacuum laminated furnace according to market demand.

Laminated glass vacuum furnace uses vacuum principle, make the glass heated under vacuum conditions, with the atmospheric pressure, let the glass in the vacuum bag pressed to exclude air and unable to make bubbles, vacuum bag is under heating and vacuum pumped conditions to make two or more pieces of glass and EVA hot together.

Vacuum bag is a core part of glass vacuum laminated furnace, it makes up of two pieces of silicone rubber sheet and silicone sealing edge, silicone rubber sheet is a key component of the entire laminated furnace, its quality directly affects the quality of glass products.

SILICONE SHEET SILICONE BLANKET SILICONE FILM FOR EVA PVB SGP GLASS VACUUMING Peter Lin, cnc@cncGlass.com, cnc@cncEVA.com Whatsapp: 0086 15013829504, WeChat: WeCan365 www.cncglass.com www.cnceva.com Silicone rubber sheet for glass industry is a key component of our company dedicated to supporting the glass vacuum laminated furnace according to market demand. Laminated glass vacuum furnace uses vacuum principle, make the glass heated under vacuum conditions, with the atmospheric pressure, let the glass in the vacuum bag pressed to exclude air and unable to make bubbles, vacuum bag is under heating and vacuum pumped conditions to make two or more pieces of glass and EVA hot together. Vacuum bag is a core part of glass vacuum laminated furnace, it makes up of two pieces of silicone rubber sheet and silicone sealing edge, silicone rubber sheet is a key component of the entire laminated furnace, its quality directly affects the quality of glass products.

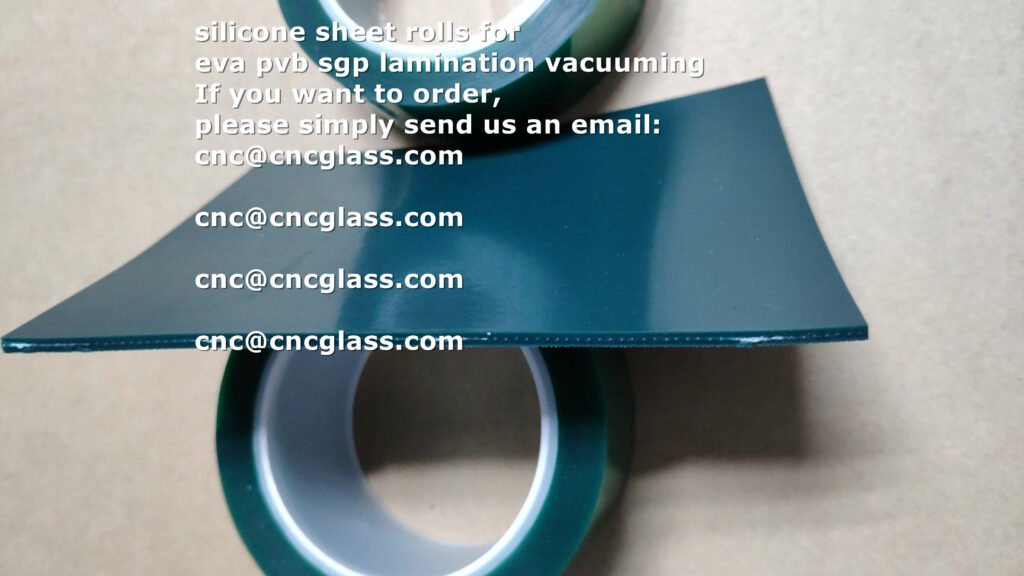

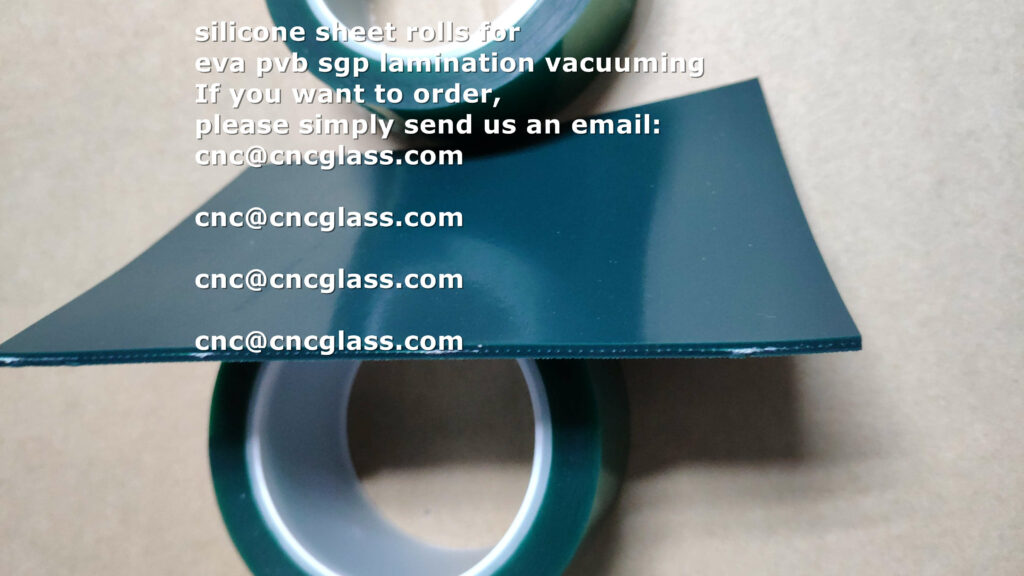

SILICONE SHEET
SILICONE BLANKET
SILICONE FILM
FOR EVA PVB SGP GLASS VACUUMING
Peter Lin, cnc@cncGlass.com,
cnc@cncEVA.com
Whatsapp: 0086 15013829504,
WeChat: WeCan365
www.cncglass.com www.cnceva.com

Silicone rubber sheet for glass industry is a key component of our company dedicated to supporting the glass vacuum laminated furnace according to market demand.
Laminated glass vacuum furnace uses vacuum principle, make the glass heated under vacuum conditions, with the atmospheric pressure, let the glass in the vacuum bag pressed to exclude air and unable to make bubbles, vacuum bag is under heating and vacuum pumped conditions to make two or more pieces of glass and EVA hot together.
Vacuum bag is a core part of glass vacuum laminated furnace, it makes up of two pieces of silicone rubber sheet and silicone sealing edge, silicone rubber sheet is a key component of the entire laminated furnace, its quality directly affects the quality of glass products.
